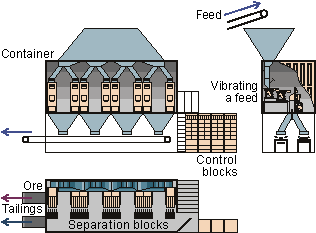

X-RAY SEPARATION MODULE SM8-X

The device is meant for separation of manganous, chromic and other ores as well as for separation of non-ferrous metal scrap and waste (for detaching of Mg-Al alloys from pieces of copper, brass, stainless steel etc.) The separation process is performed by means of X-ray spectral analysis of metal content.
All units of the module are autonomic. All components are automatically controlled.

**Parameters of SM8-X**
#	Parameter		Units	Values
1	2		3	4
1	Output on size class, mm:	-50 +20	tons/hour	120
2		-20 +10	tons/hour	30
3		-50 +10	tons/hour	60
4	Detected metals content, not less than:	- Cr, Mn	%	5
5	Detected metals content, not less than:	- sum of Fe, Mn and others in scrap	%	2
6	Extraction of selected pieces in one operation, not less than		%	96
7	Number of main units in one module:	- X-ray monoblocs		8
8		- shaking feeders		16
9		- electropneumatic valves		32
10	Number of technological sections			8
11	Number of control units			4
12	Automation degree		-	automatic
13	Duration of uninterrupted work		hour/day	up to 24
14	Consumption:	- power;	kWatt/hour	6
15	Consumption:	- compressed air (0,4 MPa)	m³/min	up to 25
16	Dimensions:	- module	m	6 x 2,4 x 2,4
17	Dimensions:	- four control units	m	2,4 x 0,6 x 1,9
18	Weight:	- module	t	4
19	Weight:	- four control units	t	0,8

Delivery of SM8-X is provided within 8 months from the moment of signing a contract. Additional technical and/or technological at-site service, wearing components and spare parts delivery can be provided at extra cost.
